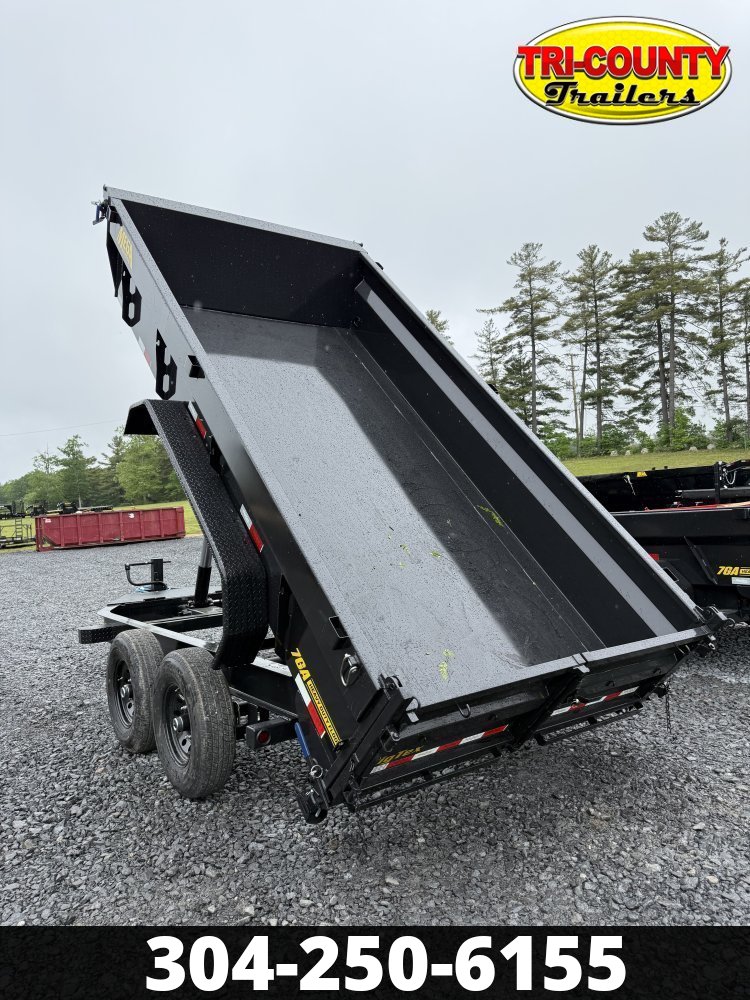

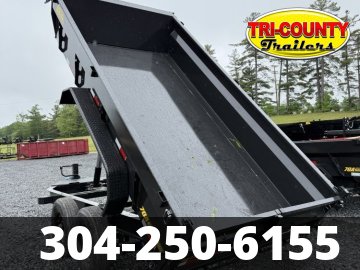

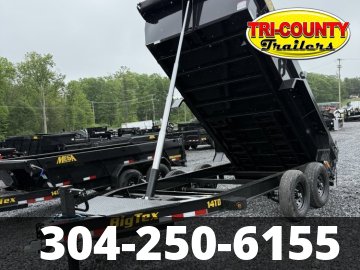

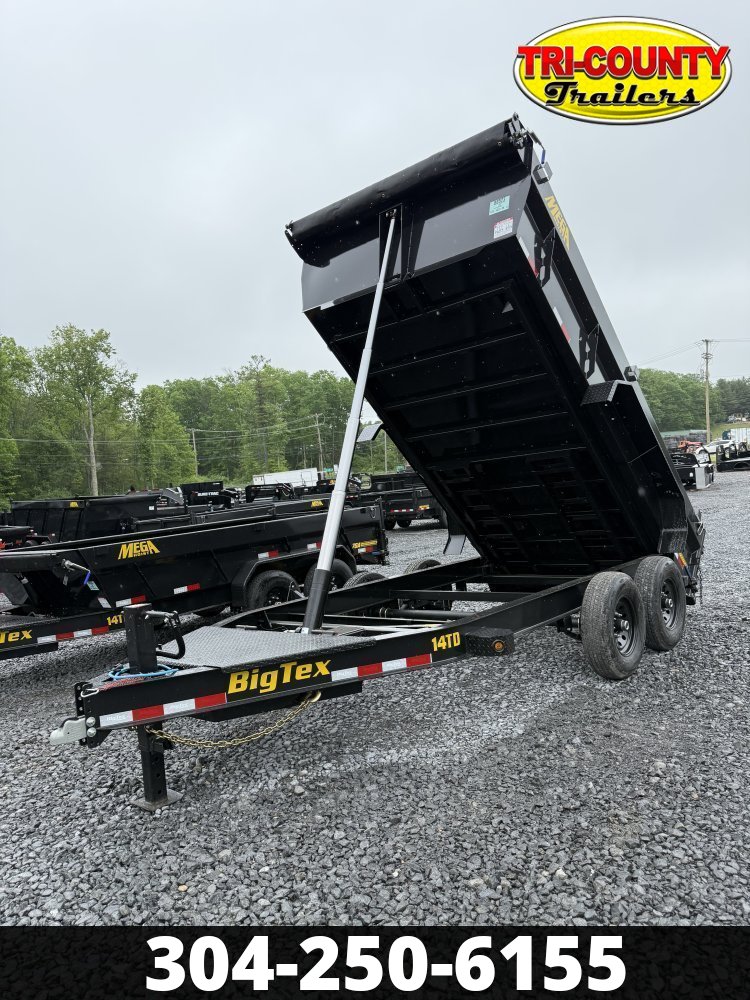

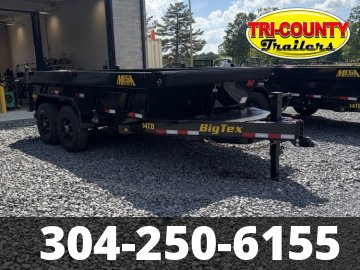

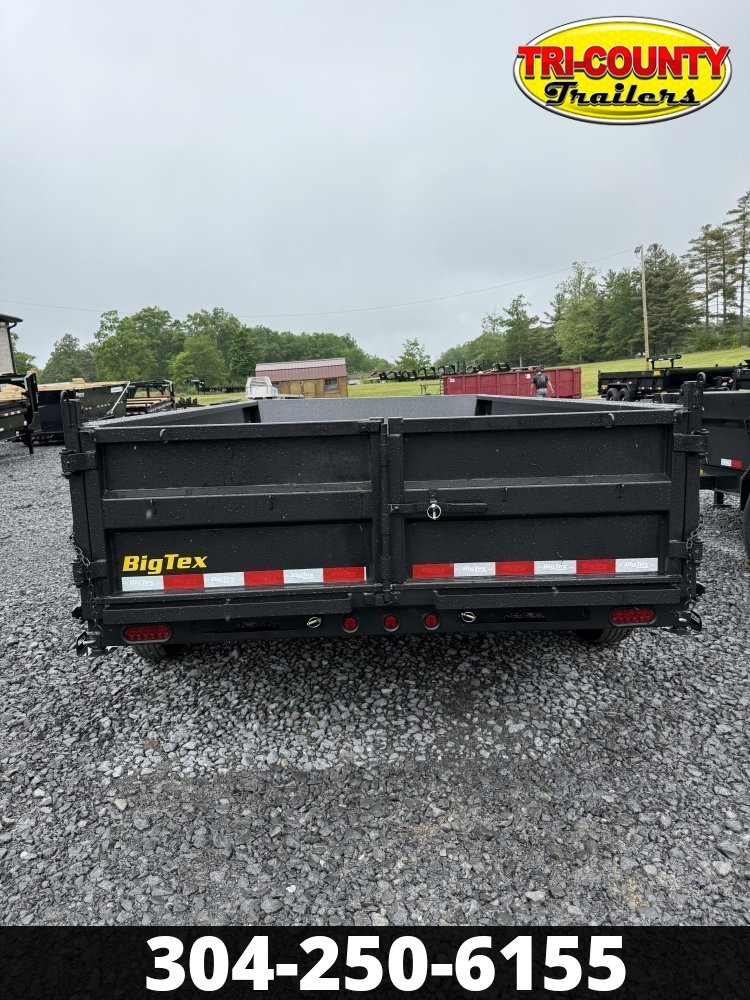

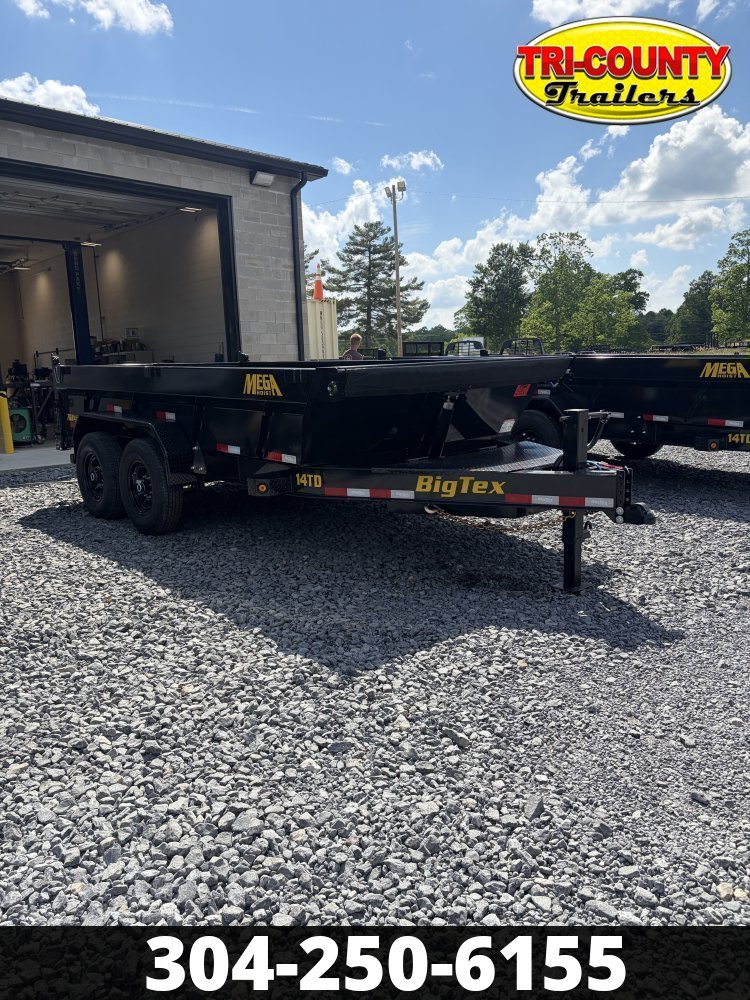

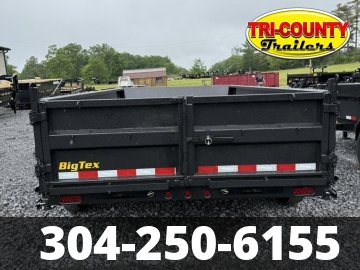

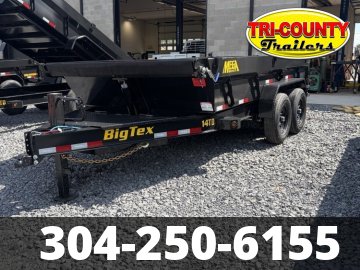

The redesigned 14TD from Big Tex is engineered for serious work. Featuring a 5-Stage Front-Mount Telescopic Cylinder, it delivers smooth, reliable lifting power for even the heaviest loads. The front-mounted cylinder enhances service access, while a steep 45° dump angle ensures fast, efficient unloading. The advanced dump body design includes reinforced side rails for added strength, and convenient features like the Demco EZ-Latch and full-width toolbox come standard. With available 4' sides, the 14TD can haul up to 16.3 cubic yards—built tough for long-lasting performance.
Standard Feature Available OptionsAxles2 - 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs Drop Axles (Lowers Deck Height to 24" from Ground)Brakes Forward Self-Adjusting Electric Brakes on Both Axles Suspension Multi-Leaf Slipper Spring w/ EqualizerTongue8" I-beam TongueCoupler2-5/16" Ball, Adjustable Demco EZ Latch Coupler Adjustable Pintle in Channel in Lieu of Coupler Safety Chains3/8" Grade 70 w/ Safety Latch Hook (2 ea)Jack12,000# Drop-Leg Jack (Side Wind)12,000# Elec/Hyd. Jack BY Stillwell™Frame8" Seamless I-Beam (13#)Cross-Members3" Channel on 16" CentersFloor7 Gauge Smooth SteelFenders9" x 72" 14 Ga. Diamond Plate Double Broke Ramps Not Included6.5’ Slide In Ramp Package Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)Trailer Plug7-Way RV Lights Recessed, Grommet-Mounted L.E.D. Lighting Wiring Sealed, Modular Cold-Weather Wiring HarnessTiresST235/80 R-16 Load Range E Radial Tires Tire Upgrade (ST235/80 R-16 LR-G)Bolt Pattern8-LugWheelsBlack Mod Steel Spare Mount Side Spare Tire Mount Spare Tire Not Included Spare Tire & Wheel (ST235/80 R-16 LR-E)Spare Tire Upgrade (ST235/80 R-16 LR-G)Paint Type Professional Finish w/ Primer Standard Paint Color Black Tie-Downs(4) 1/2" D-Rings Inside Bed to Secure Equipment Break-Away Kit Complete Breakaway System w/ Zip Breakaway CableBattery12V Deep CycleCharger5A 110V on Board Battery Charger Gate Rear Combo Gate (Barn Doors & Spreader Gate)J-Hooks Along sides and rear for Cargo Control Power, Power Up/Gravity Down Movement5 Watt Solar Charger Wireless RemoteRam5-Stage Telescopic CylinderSides24" Tall (10 Ga) with formed Channel Supports4' Solid Sheet Metal Sides Stabilizers Rear Stabilizer Stands Steps Convenient Side-Step to Access Top Rail Storage Full Tongue Tool Box with Locking Lid Tarp Fully-Formed Tarp Shroud with Tarp & Rear Tarp Rod Holders Top Rail3"x 2" Rectangular Tubing Steps & Handles Convenient Side-Step to Access Top Rail X-Series Package X-Series Package (Solar Charger, Swing Arm Tarp, Hydraulic Jack, 14Ply tires
