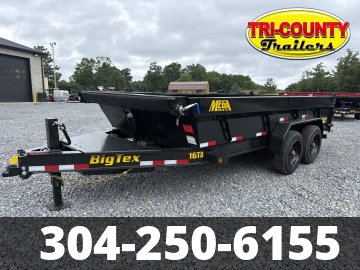

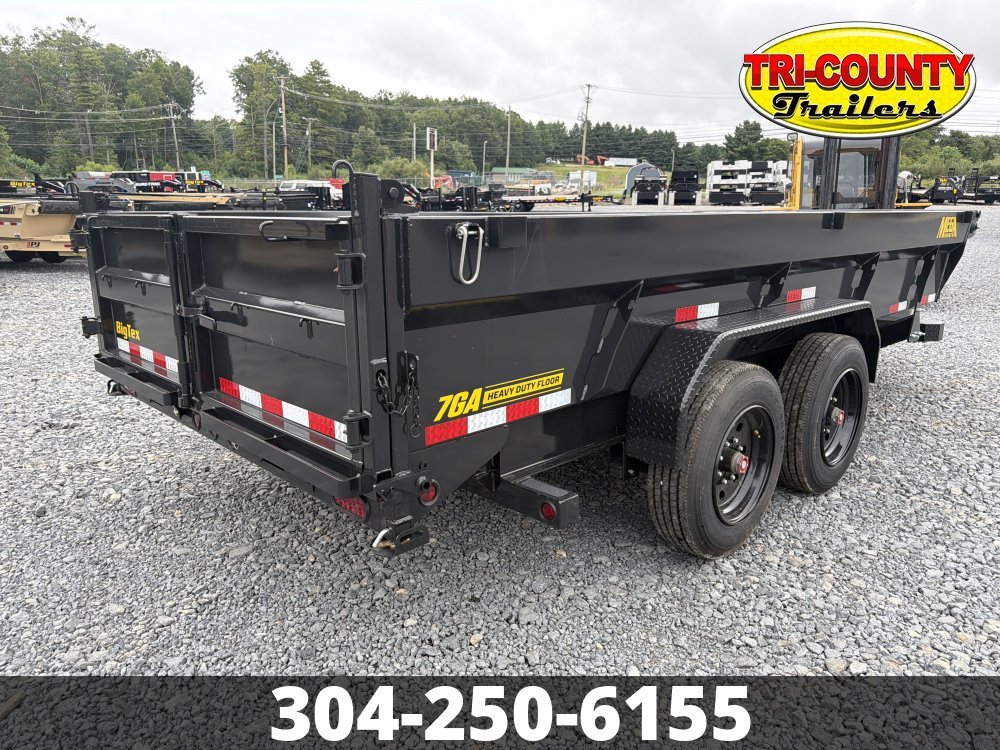

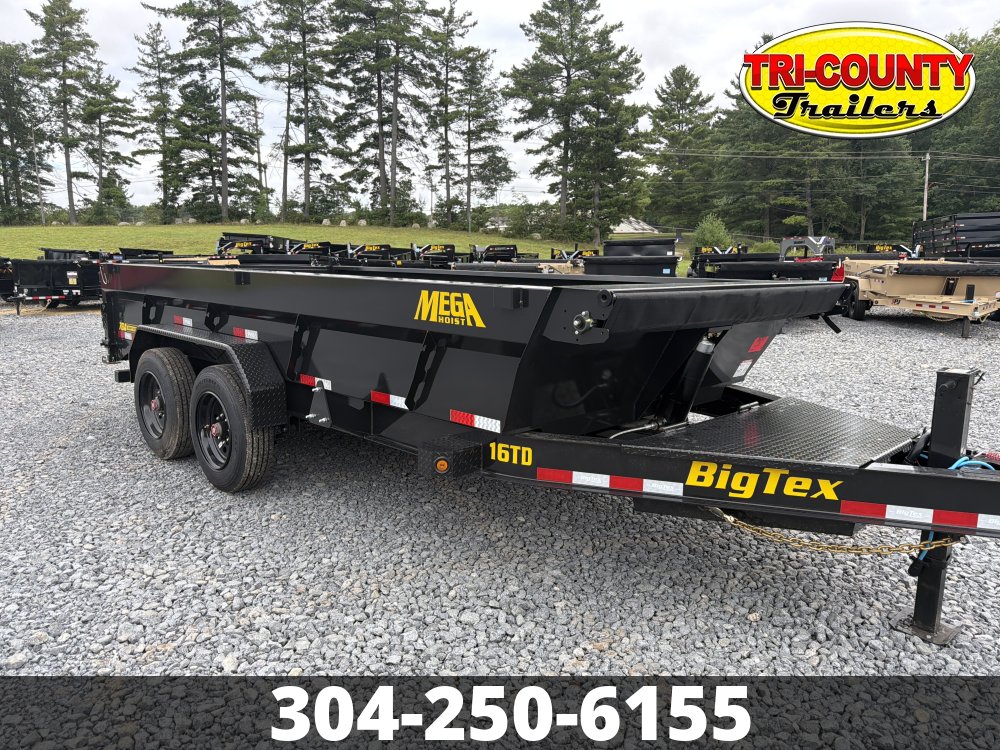

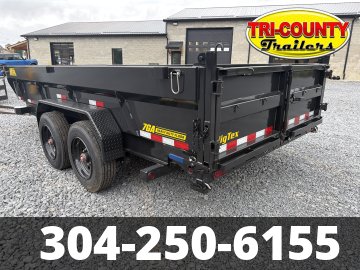

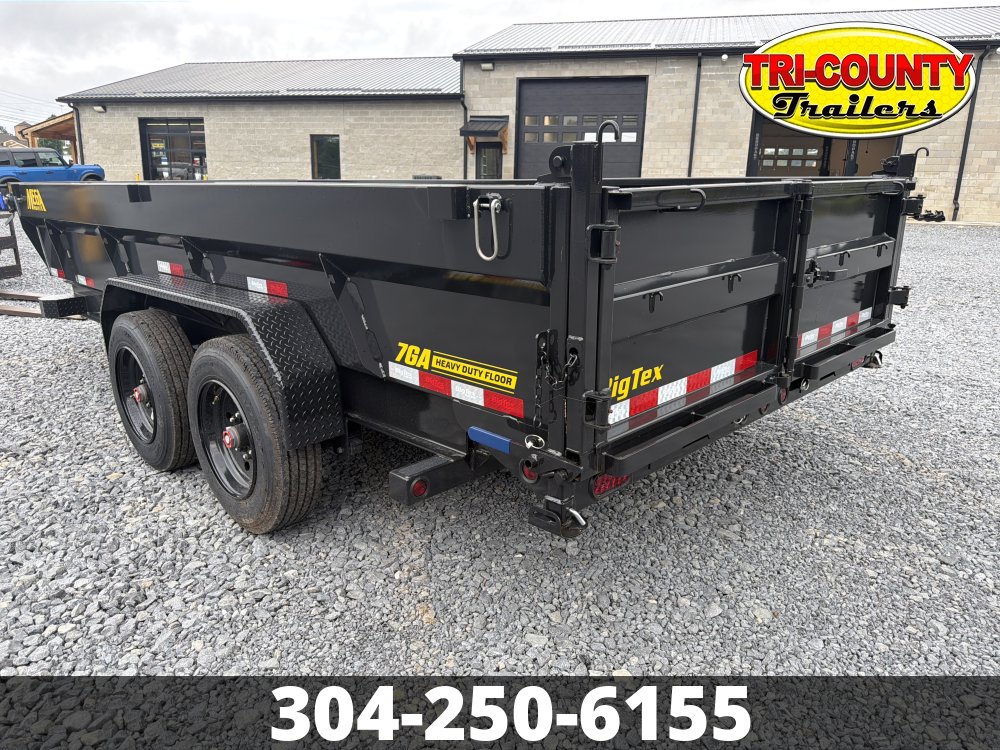

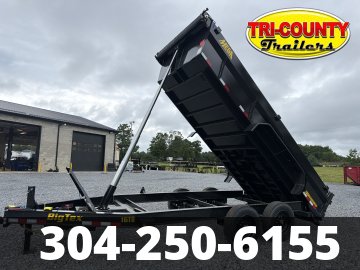

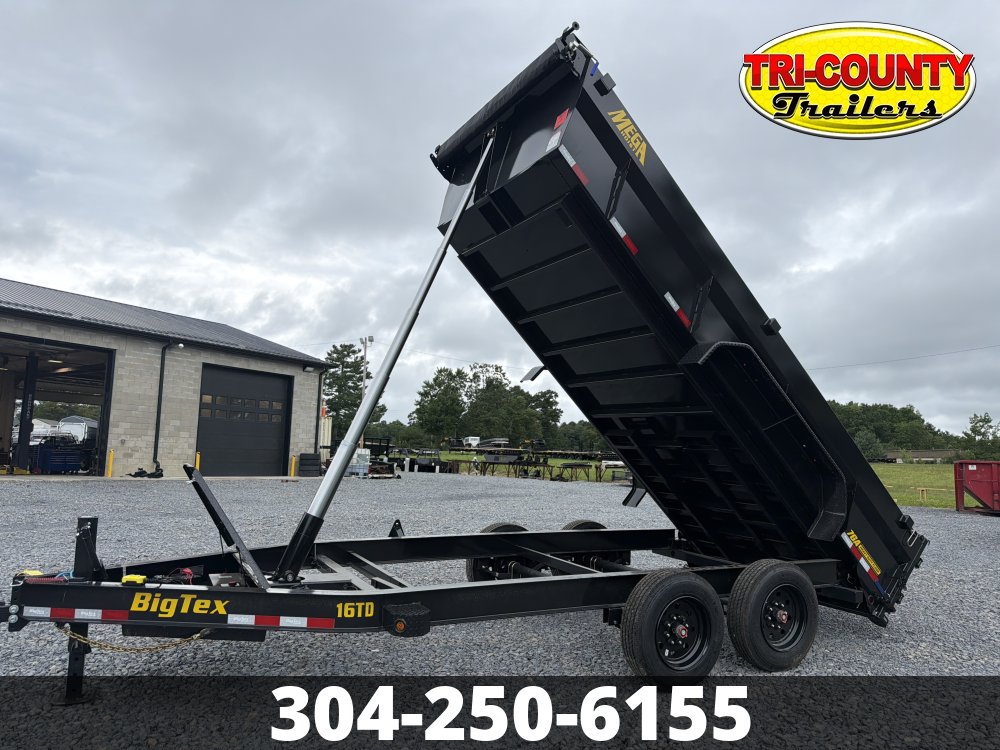

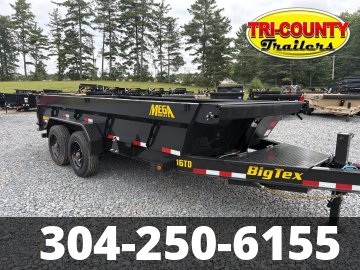

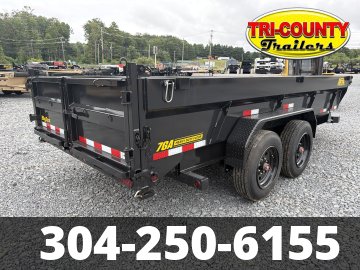

The redesigned 16TD from Big Tex is engineered for serious work. Featuring a 5-Stage Front-Mount Telescopic Cylinder, it delivers smooth, reliable lifting power for even the heaviest loads. The front-mounted cylinder enhances service access, while a steep 45° dump angle ensures fast, efficient unloading. The advanced dump body design includes reinforced side rails for added strength, and convenient features like the Demco EZ-Latch and full-width toolbox come standard. With available 4' sides, the 16TD can haul up to 16.3 cubic yards—built tough for long-lasting performance.
Standard FeatureAvailable OptionsAxles2 - 8,000# Premium, Cambered Axles with Oil Bath and Valcrum CapsDrop Axles (Lowers Deck Height to 24" from Ground)BrakesForward Self-Adjusting Electric Brakes on Both AxlesSuspensionMulti-Leaf Slipper Spring w/ EqualizerTongue8" I-beam TongueCoupler2-5/16" Ball, Adjustable Demco EZ Latch CouplerAdjustable Pintle in Channel in Lieu of CouplerSafety Chains3/8" Grade 70 w/ Safety Latch Hook (2 ea)Jack12,000# Drop-Leg Jack (Side Wind)12,000# Elec/Hyd. Jack BY Stillwell™Frame8" Seamless I-Beam (13#)Cross-Members3" Channel on 16" CentersFloor7 Gauge Smooth SteelFenders9" x 72" 14 Ga. Diamond Plate Double BrokeRampsNot Included6.5’ Slide In Ramp PackageStake PocketsStake Pockets Along Both Sides (Quantity Varies by Length)Trailer Plug7-Way RVLightsRecessed, Grommet-Mounted L.E.D. LightingWiringSealed, Modular Cold-Weather Wiring HarnessTiresST215/75 R-17.5 Load Range HBolt Pattern8-LugWheelsBlack Mod SteelSpare MountSide Spare Tire MountSpare TireNot IncludedSpare Tire (ST215/75 R-17.5 LR-H)Paint TypeProfessional Finish w/ Primer StandardPaint ColorBlackTie-Downs(4) 1/2" D-Rings Inside Bed to Secure EquipmentBreak-Away KitComplete Breakaway System w/ Zip Breakaway CableBattery12V Deep CycleCharger5A 110V on Board Battery ChargerGateRear Combo Gate (Barn Doors & Spreader Gate)J-HooksAlong sides and rear for Cargo ControlPowerPower Up/Gravity Down Movement5 Watt Solar ChargerWireless RemoteRam5-Stage Telescopic CylinderSides24" Tall (10 Ga) with formed Channel Supports4' Solid Sheet Metal SidesStabilizersRear Stabilizer StandsStepsConvenient Side-Step to Access Top RailStorageFull Tongue Tool Box with Locking LidTarpFully-Formed Tarp Shroud with Tarp & Rear Tarp Rod HoldersTop Rail3"x 2" Rectangular TubingSteps & HandlesConvenient Side-Step to Access Top Rail
