Standard Equipment Information

Bolt-on cab protector with plasma-cut rear-view window grille. Safer, better-looking and heavier-duty protection for the cab against materials that may fall during loading or shift while in transit.

Construction and features:

• 6" structural steel long sills
• 3" structural crossmembers
• 18" stationary or fold-down sides with wood pockets
• 10-gauge steel floor
• Formed-steel headache rack with cab protector
• 6" channel-steel frame rails
• Optional ICC rear bumper Sold Separately
• 12V trailer plug completed at upfit/Sold Separately
• Rear lighting completed at upfit
• Red marker lighting
• (4) welded tiedowns with D-rings

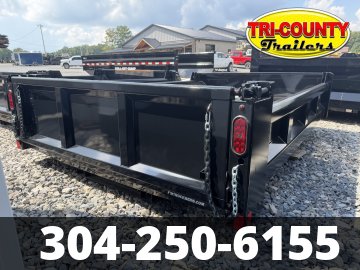

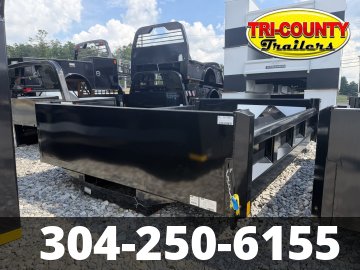

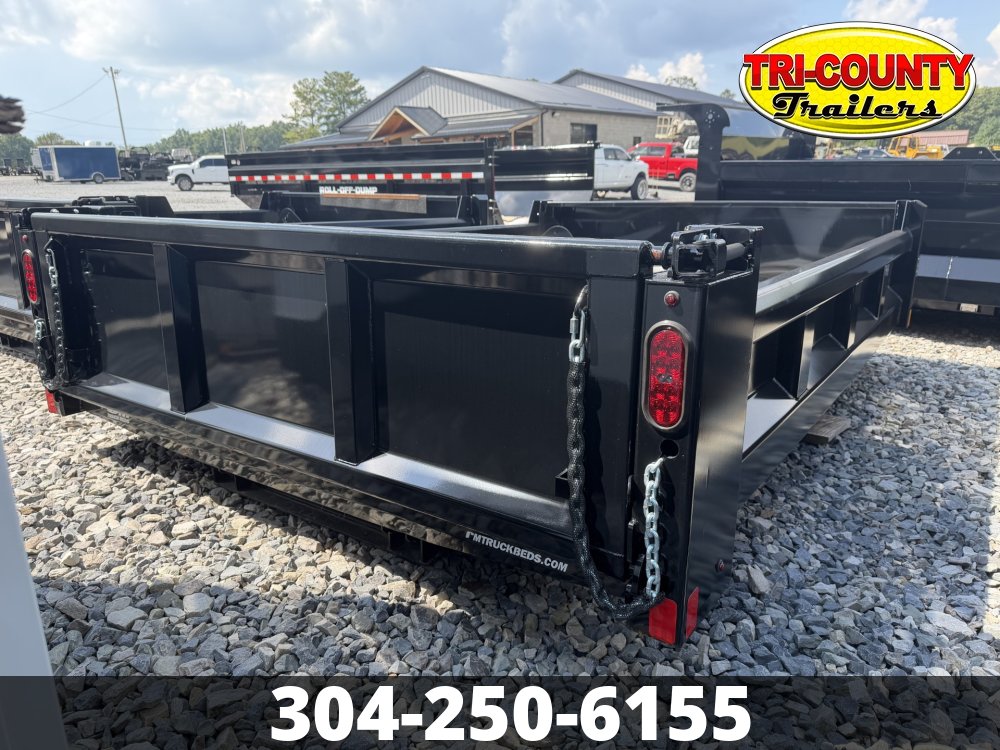

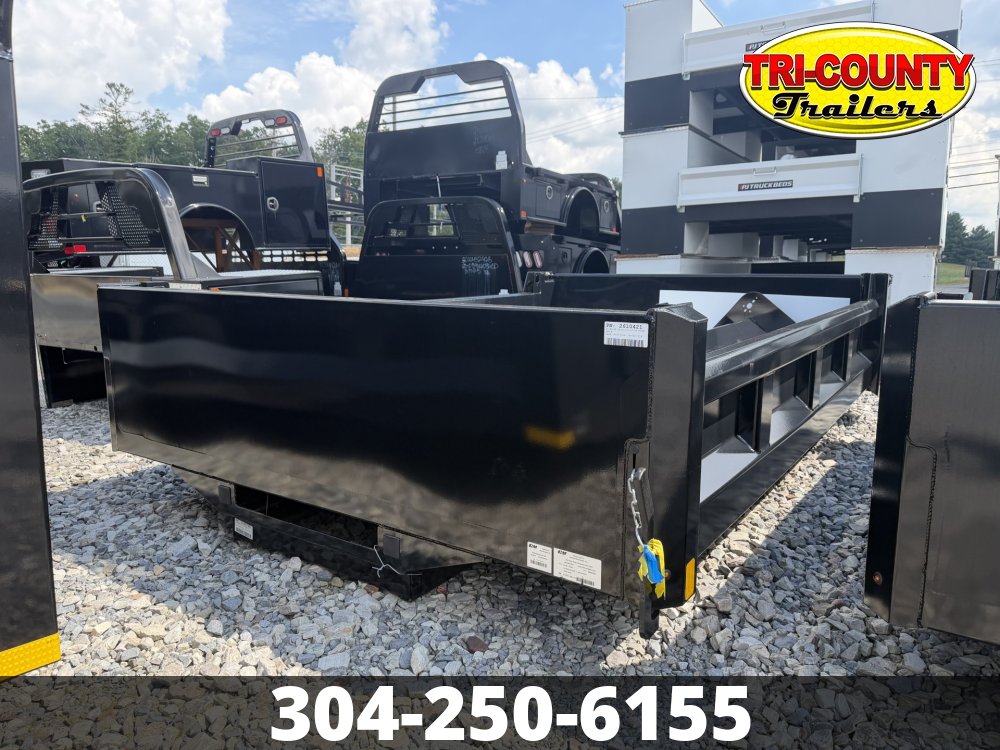

18" 10-gauge side walls feature tube top rails and formed bottom rails for lasting durability. 2-point 24" tall rear gate provides a tight seal in transit and allows you to dump or spread materials with ease.

LED DOT-approved lighting provides bright, dependable performance with minimal maintenance.

Additional specifications:

• Rear skirt: N/A
• GN hitch: N/A
• BP hitch: N/A
• Side rails: N/A
• Fuel fill: Chassis OEM
• Light box (rear skirt): N/A
• Toolbox: N/A
• Toolbox handle: N/A
• Fenders: N/A
• Sidesteps: N/A

Note: Stop/Tail/Turn lights are provided with the chassis by the OEM and should be installed at upfit.

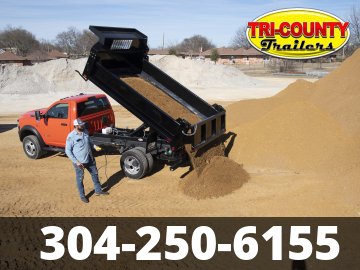

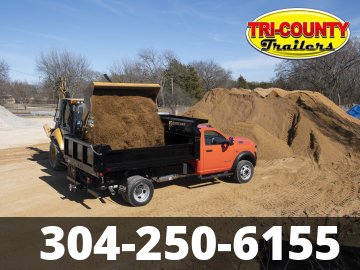

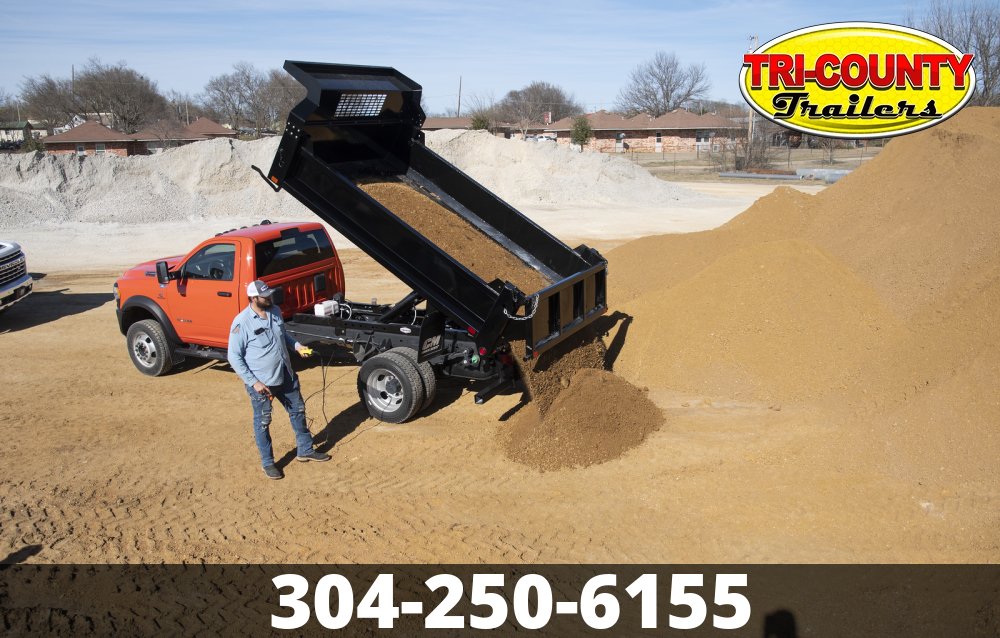

This new CM Truck Bed dump body is built to handle demanding loads with strength and durability.
