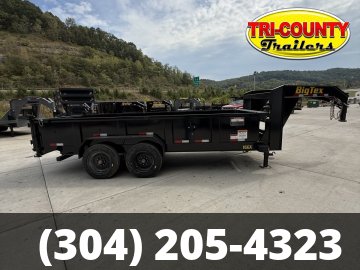

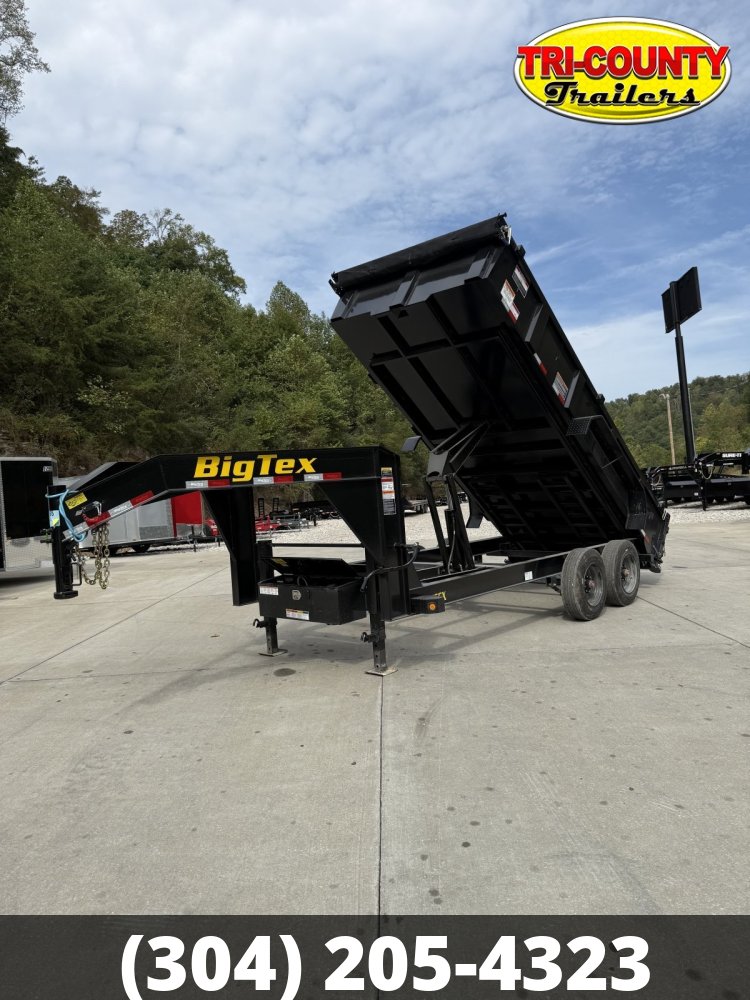

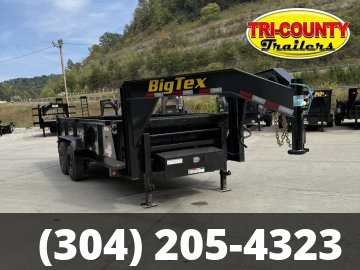

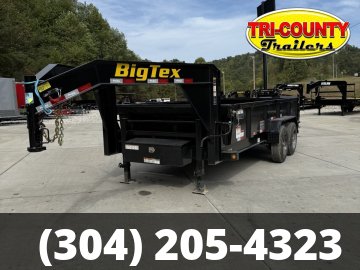

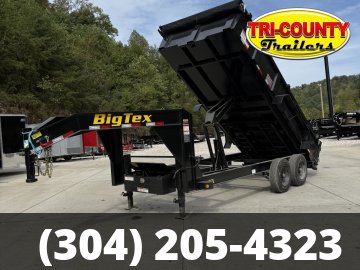

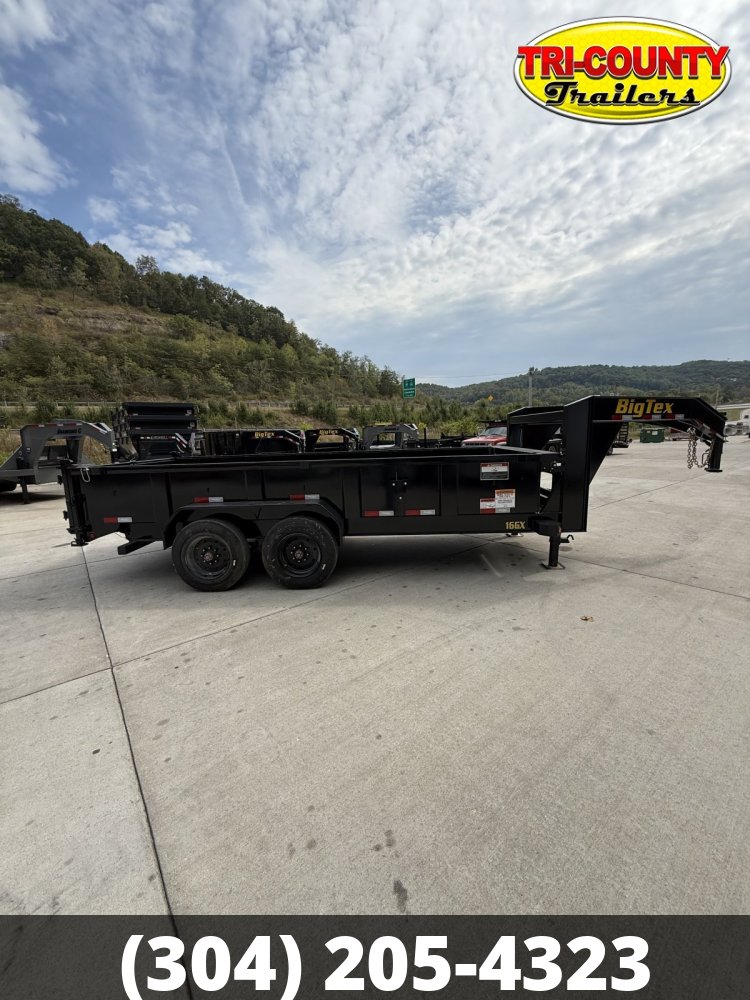

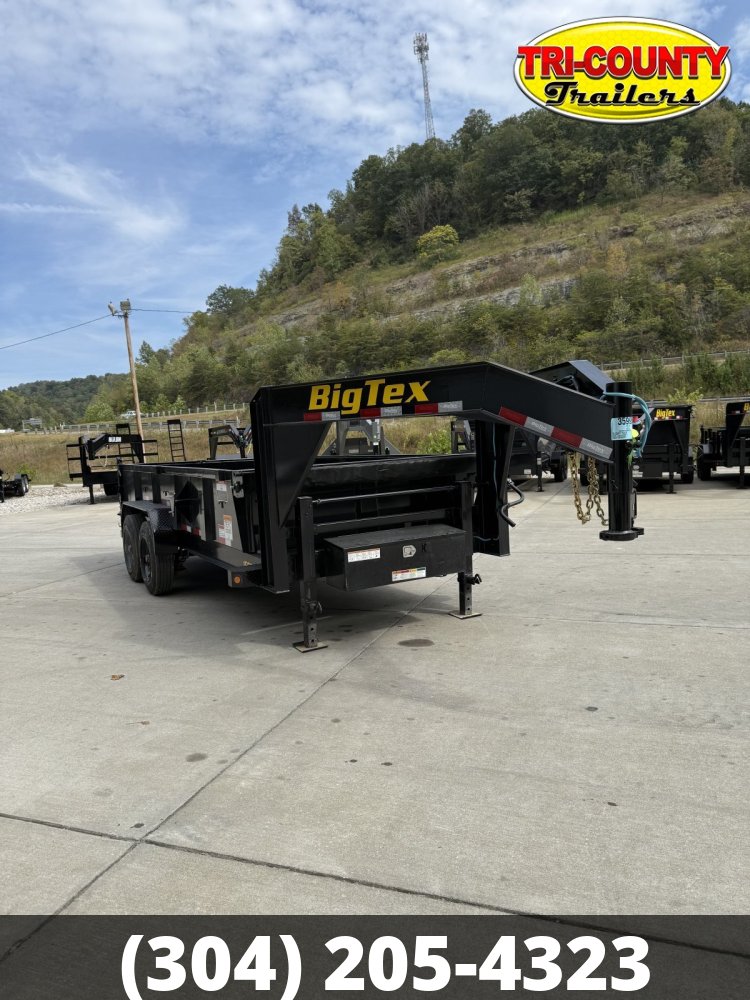

2026 Big Tex 2026 Big Tex 16GX-16 is a Super Duty Tandem Axle Gooseneck Dump built for demanding heavy-duty hauling. Its robust, long-lasting structure and frame provide a 12,220 lb. load capacity, while the feature-rich dump box makes loading, securing, and unloading easier for professionals working in challenging conditions.
Features and Specifications:
- Axles: 2 - 8,000# premium cambered axles with oil bath and Valcrum caps
- Brakes: Forward self-adjusting electric brakes on both axles
- Suspension: Multi-leaf slipper spring with equalizer
- Tongue: 10" I-beam neck
- Coupler: Round adjustable pin 2-5/16" gooseneck coupler
- Safety Chains: 3/8" Grade 70 with safety latch hooks, 2 each
- Jacks: Dual 12,000# drop-leg side-wind jacks
- Frame: 8" I-beam, 10#
- Cross-Members: 3" channel on 16" centers
- Floor: 7 gauge smooth steel
- Fenders: 9" x 72" 14 Ga. diamond plate double broke
- Ramps: 6.5' slide-in ramp package
- Stake Pockets: Along both sides; quantity varies by length
- Trailer Plug: 7-way RV
- Lights: Recessed, grommet-mounted LED lighting
- Wiring: Sealed, modular cold-weather wiring harness
- Tires: ST215/75 R-17.5 Load Range H radial tires
- Bolt Pattern: 8-lug
- Wheels: Black mod steel
- Spare Mount: Side spare tire mount
- Spare Tire: Not included
- Paint: Professional finish with primer standard and powder coat paint; black
- Tie-Downs: (4) 1/2" D-rings inside bed to secure equipment; along sides and rear for cargo control
- Breakaway Kit: Complete breakaway system with zip breakaway cable
- Battery: 12V deep cycle
- Charger: 5A 110V on-board battery charger, not included
- Removable Deck on Neck: Bolt-on, 8' W x 6' L

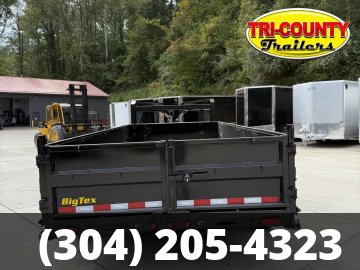

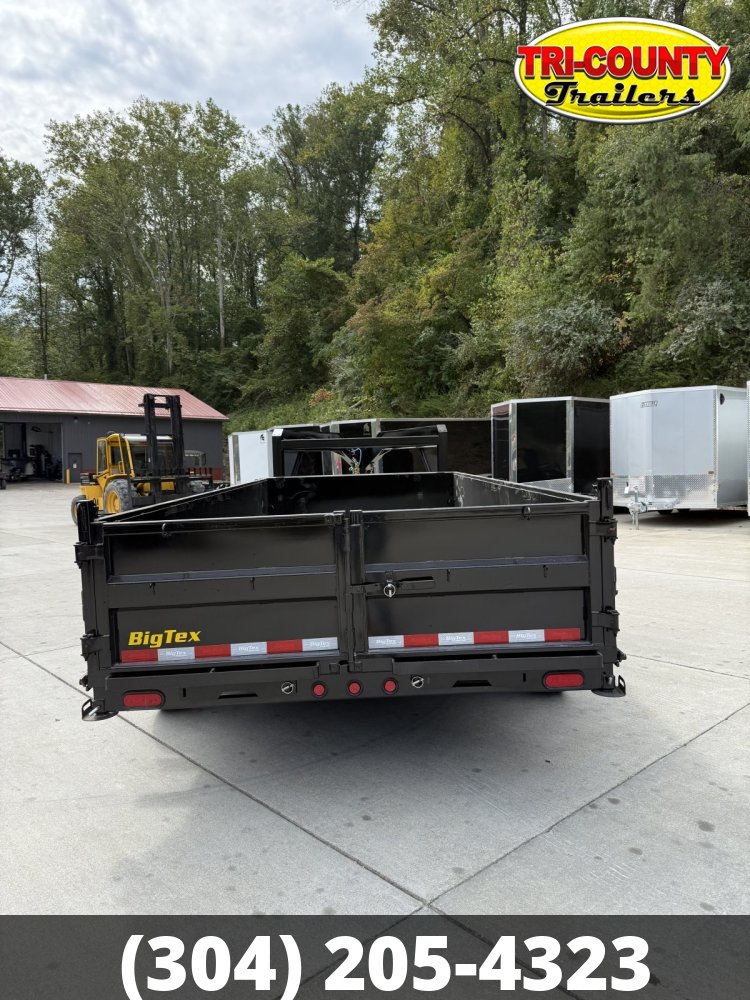

- Gate: Rear combo gate with barn doors and spreader gate
- J-Hooks: Along sides and rear for cargo control
- Power: Power-up, power-down and gravity-down hydraulic pump with wireless remote
- Ram: Self-contained scissor
- Sides: 24" tall, 10 Ga., with formed channel supports
- Stabilizers: Rear stabilizer stands
- Steps and Handles: Convenient side-step to access the top rail
- Storage: Lockable pump and battery box mounted between front jacks
- Tarp: Fully formed tarp shroud with tarp and rear tarp rod holders
- Top Rail: 3" x 2" rectangular tubing
This tough trailer is designed to deliver dependable performance and convenient operation on demanding jobs.
2026 Big Tex 16GX-16
MSRP: $18,571
Our Price: $15,460
Financing as low as $304.60/mo
Trailer Location
Trailer Specs
Stock Number: 35995
VIN: 16V3D2424T5435995
Condition: New
Year: 2026
Manufacturer: Big Tex Trailer Manufacturing, Inc.
Model: 16GX 83X16 17.5K GOOSENECK SCISSOR DUMP
Weight (lbs): 5,940 lbs
Length: 16'
Width: 83"
Height: 24"
GVWR: 17,500
Features: 7 Gauge Body, Barn Doors, Combo Gate, Electric Brakes, LED Lights, Side Steps
