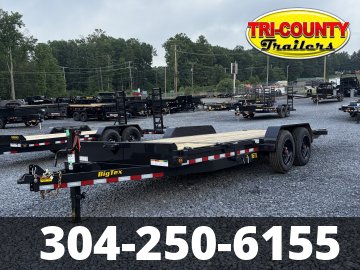

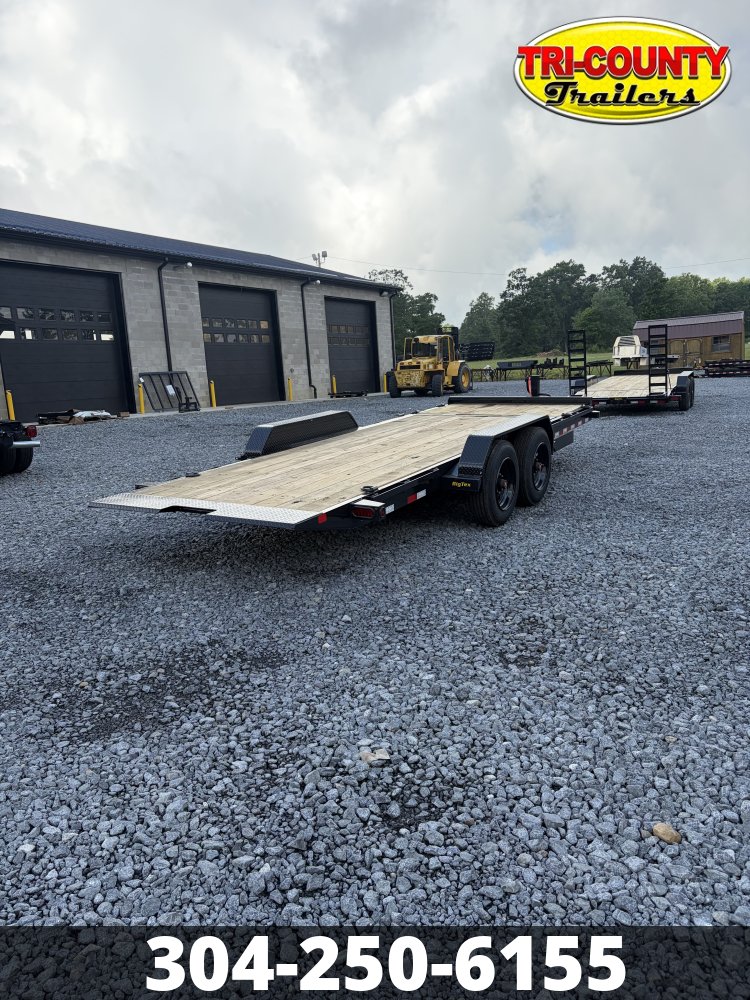

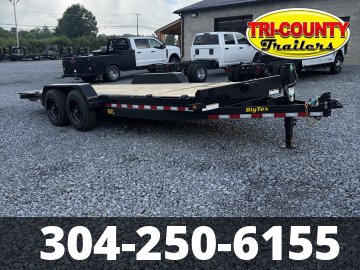

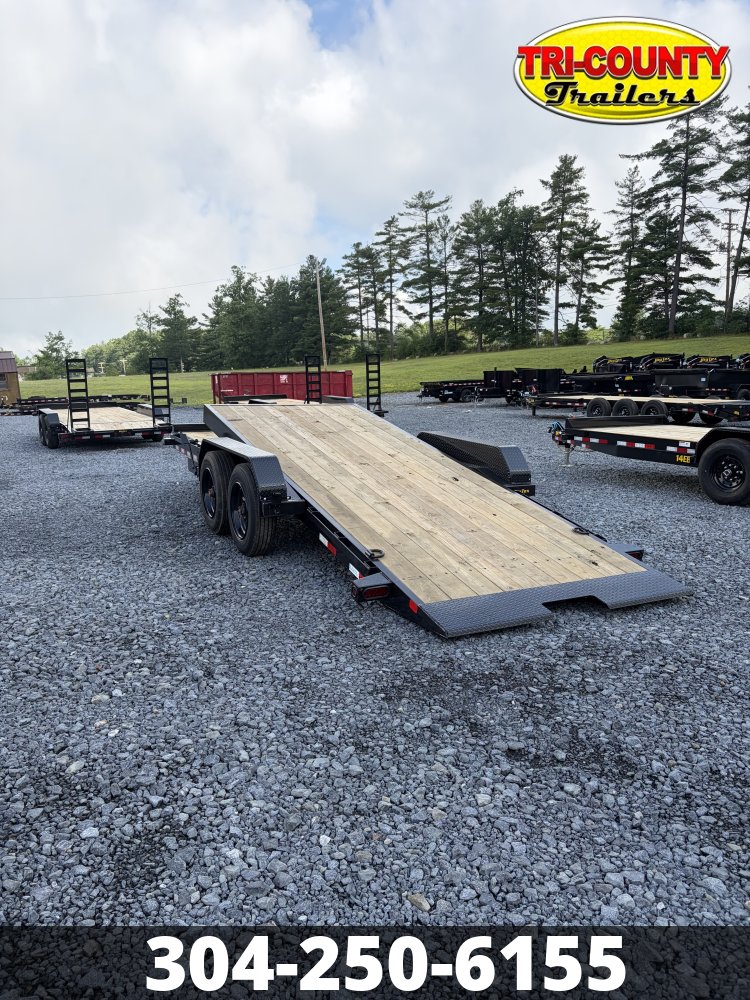

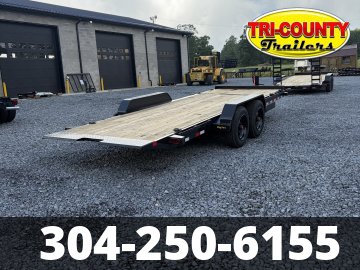

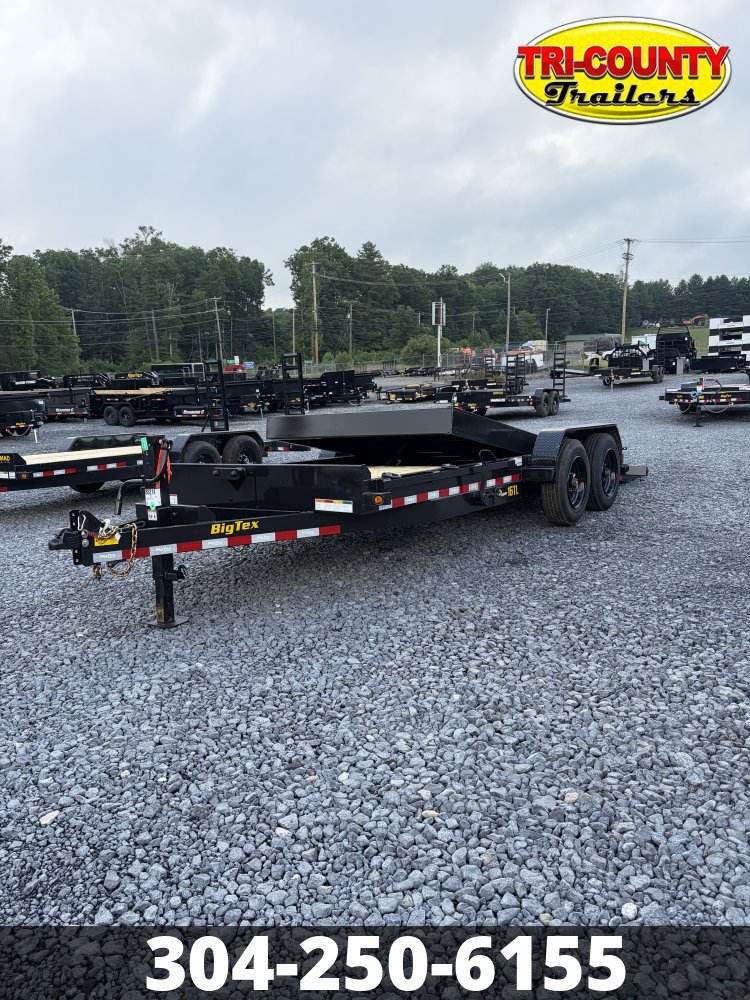

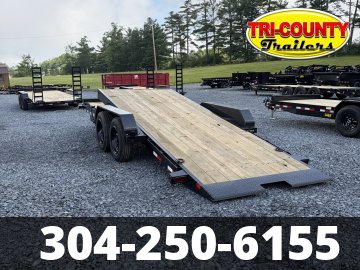

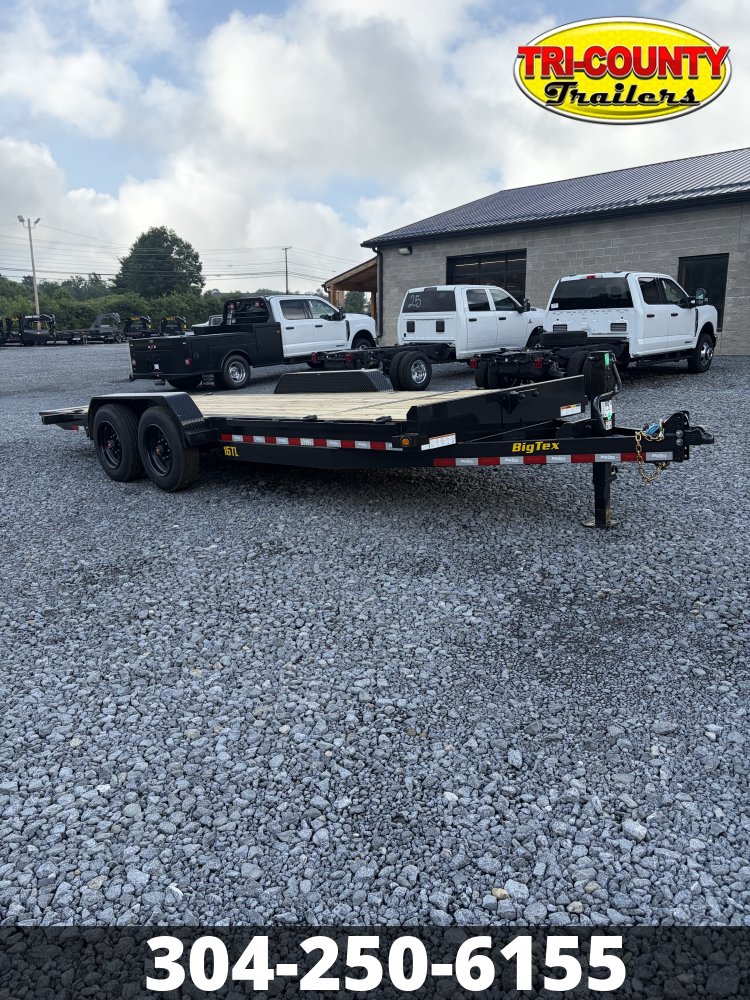

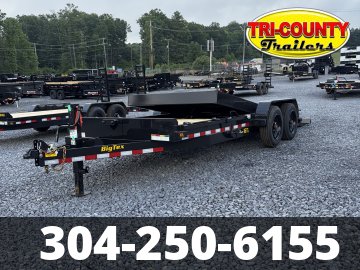

Upgrade your productivity and versatility with the 16TL Super Duty Tilt Bed Equipment Trailer. Coming in multiple models—from 20-feet to 22-feet—this trailer features a stationary front deck and a rear tilt deck, giving you all kinds of options for loading all your low-profile equipment. And with a 12-degree tilt angle and a diamond plate knife edge, loading is a cinch. With sturdy construction and multiple ways to secure your cargo, this thing will haul for the long haul.
Valve Control on Hydraulic Cylinder
A hydraulic dampening system with valve control can lock the cylinder to make loading smooth and easy while ensuring your cargo is secured for the long haul.
Standard Feature Available OptionsAxles2 - 8,000# Premium, with Oil Bath and Valcrum Caps Brakes Forward Self-Adjusting Electric Brakes on Both Axles Suspension Torsion Axles Coupler Adjustable 2-5/16” Demco EZ Latch Adjustable Pintle in Channel in Lieu of Coupler Safety Chains3/8" Grade 70 w/ Safety Latch Hook (2 ea)Jack12,000# Drop-Leg Jack (Side Wind)Frame8" ChannelCross-Members3" Channel on 16" Centers Front Stop Rail3/16" Fabricated Front Stop Rail Floor Treated Pine Floor Blackwood Pro- Outer Deck Only (X Length of Trailer)Blackwood Pro Rubber Infused Lumber Floor (per linear foot)1/8” Diamond Plate Steel Floor (Per Square Foot)Fenders9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)Trailer Plug7-Way RV Lights Recessed, Grommet-Mounted L.E.D. Lighting Wiring Sealed, Modular Cold-Weather Wiring HarnessTiresST215/75 R-17.5 Load Range H Radial Tires Bolt Pattern8-BoltSpare Mount Front Spare Tire Mount Spare Tire Not Included Spare Tire & Wheel (ST215/75 R-17.5 LR-H)Paint Type Professional Finish w/ Primer Standard Paint ColorBlackRedGreyWhiteDesert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow Tilt Deck Dimensions75" Wide (83" Between Fenders) with 1/4" Diamond plate Knife Edge Tilt Deck Operation Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism Stationary Deck Area4' x 83" (20' Models)6'x 83" (22' Models)Rubrail Rub Rail Along Both Sides Tie-Downs(6) 5/8" D-Rings Extra 5/8" D-Rings Recessed D-Ring in Floor (Steel Floor Only)Break-Away Kit Complete Breakaway System w/ Zip™ Breakaway Cable and Charger Tilt Deck Angle14°
