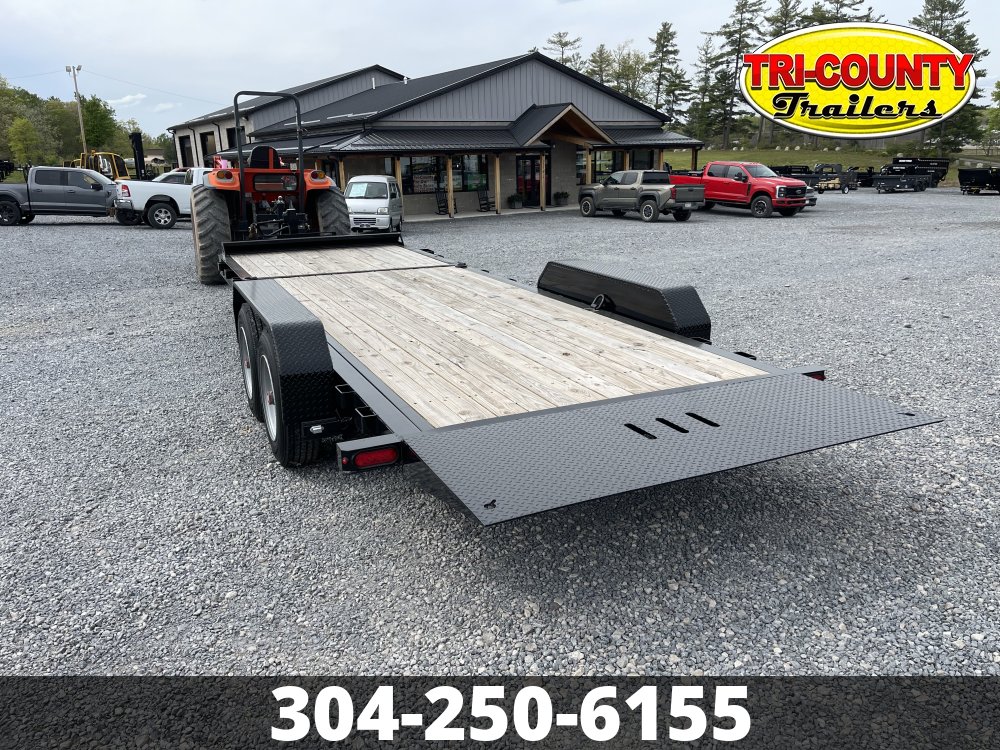

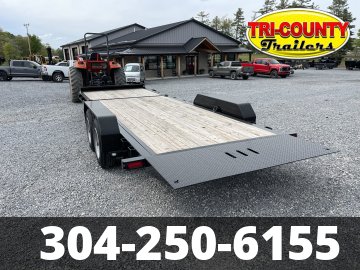

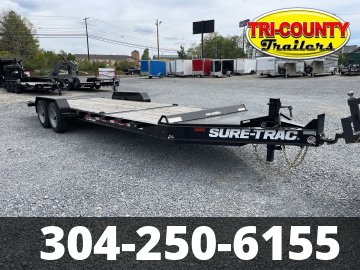

The Pro Series® Tilt Bed Equipment Trailer is the ultimate choice for professionals seeking a durable, high-capacity trailer for their hauling needs. Designed with heavy-duty I-Beam construction, this trailer ensures exceptional strength and stability, making it ideal for transporting heavy equipment and materials. Available in both straight tilt and stationary deck configurations, it offers versatility to accommodate various storage requirements.
With Gross Vehicle Weight Ratings (GVWR) of 15.4K, 17.6K, and 22K, the Pro Series Tilt Bed Equipment Trailer can handle payloads of nearly 18,000 lbs, providing ample capacity for even the most demanding jobs. The balanced gravity tilt feature allows for smooth loading and unloading, while a built-in stop valve ensures safety during operation. The easy, hands-free locking latch secures the bed, giving you peace of mind while on the move.
GVWR (lbs)
17600
GAWR (lbs/axle)
8000
Curb Weight
4420
Payload
13180
Width
7
Length
22
Overall Length
344
Deck Height
22
Coupler Height
17-26
Length Deck
277
Height Deck
22
Width Between Fender
82
Width Tilting Deck
82
Load Angle
14.5
Type
OPEN
Axle
(2) 8000 lb. Slipper Spring Brake
Breakaway
Battery, Switch, and Lanyard
Bulkhead
HD Bulkhead with Integrated Tie-Down Points
Connector Plug
Round 7-pin Blade
Coupler
Adjustable 4-Bolt Pintle Ring
Crossmembers
3" x 2" Tube, 16" On-Center
Decking
2" Pressure Treated Pine, 6' Stationary
Exterior Finish
Industrial Grade Polymer Finish
Exterior Lights
Full LED, DOT Compliant
Exterior Storage
Large Toolbox with Interior Light and Gas Spring, Spare Tire Carrier
Fenders
Double Break Tread Plate
Frame
8", 13 lb/ft I-Beam, Tilting Deck - 6" x 4" x 5/16" Reinforced Angle
Hubs
Oil Bath
Hydraulic Components
Easy Locking Tilt Bed Latch, Hydraulic Cushion Load Cylinder with Stop Valve
Ramp(s)
HD Diamond Plate Knife Edge Tail
Safety Chains
DOT Compliant
Tie Downs
(4) 3/4" D-Rings, Oversize 5" x 1/4" Thick Stake Pockets
Tires
215/75R17.5J 18-PLY
Tongue
8" Flange, 13 lb/ft I-Beam
Tongue Jack
12K, 2-Speed Drop Leg
Wheels
17.5", 8-Lug Steel
